Drag the larger AV cart out into the room as in picture below. This is the cart with the sound mixer and single computer monitor.
Connect the cart to power and hub box.
You will find cables coiled on the wall. You need the cable set with red taped microphone connections and yellow taped network connections.
connect to sockets on end of cart as shown below - 2 audio cables, one network cable, and power
Connect other end of cable to Hub box on wall in side closet as per photos below.
If there are already cables plugged into the sockets you need on the Hub box - you are OK to unplug them.
Hub box on wall inside closet. You may ignore the kitchen box - it will not be used.
Connect two Red taped audio cables and one yellow taped network cable to hub box
Plug power into any outlet it will reach
turn on house amps. they are located in the amp rack in the closet to the left of the stage

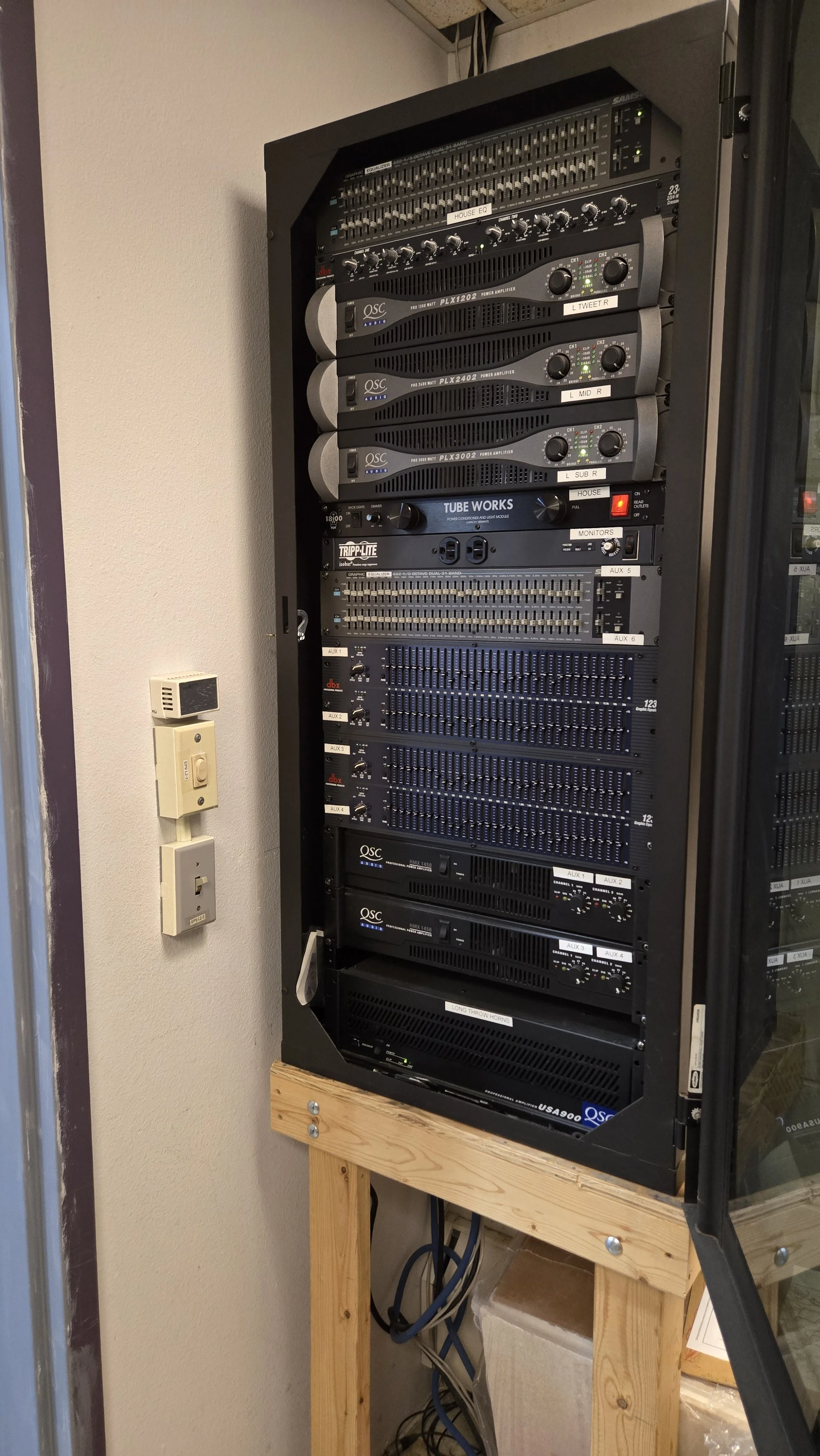

amp rack inside closet left of stage
This switch labeled “house” turns on amps
Operating the soundboard
this is the soundboard - X32
A: select the “vocals” control layer
B: these are the microphone channels #27 & #28 - be sure they are not mute. use the faders (sliders) to adjust channel level
C: this is the main volume slider. Board boots up with it at 0, so you’ll need to push it about halfway up.
D: this is the audio control if videos are being played from the computer
In the drawer in the AV cart, you’ll find two microphones, and the remote to turn on the projector.
Use mic #27 for the podium. #28 can be used for anything else.
Mics turn on with a switch on the bottom. Red light means ON.
The mic stand is in the closet to the right of the stage.
IF SPEAKER HAS A POWERPOINT:
Projector turns ON/OFF with remote.
ON: Point remote at projector and hit “on” once. After about a minute you’ll see light in the lens.
OFF: point remote at projector and hit “off” TWICE.
Life will be easiest if speaker can load Powerpoint onto church computer.
If they have a Google Slides presentation, login to their Google account from church computer.
If they absolutely must use their own laptop, you can connect it to the projector by taking the HDMI cable from the back of the church computer and plugging it into the speaker’s laptop.
Church computer is on AV cart. Keyboard and mouse are on slide-out drawer.
Computer’s ON button is hard to see. Look for the white tape.
This is the password to login to the computer. Go ahead and load speakers powerpoint directly onto this computer.
I’m sure that by this point everything is on and working perfectly, but if not, don’t struggle, call Chris at 319-296-8482.
