audio connections for band rehearsal



Disconnect all audio and network cables from HUB box. You may leave the camera cables (ports with blue tape) plugged in.

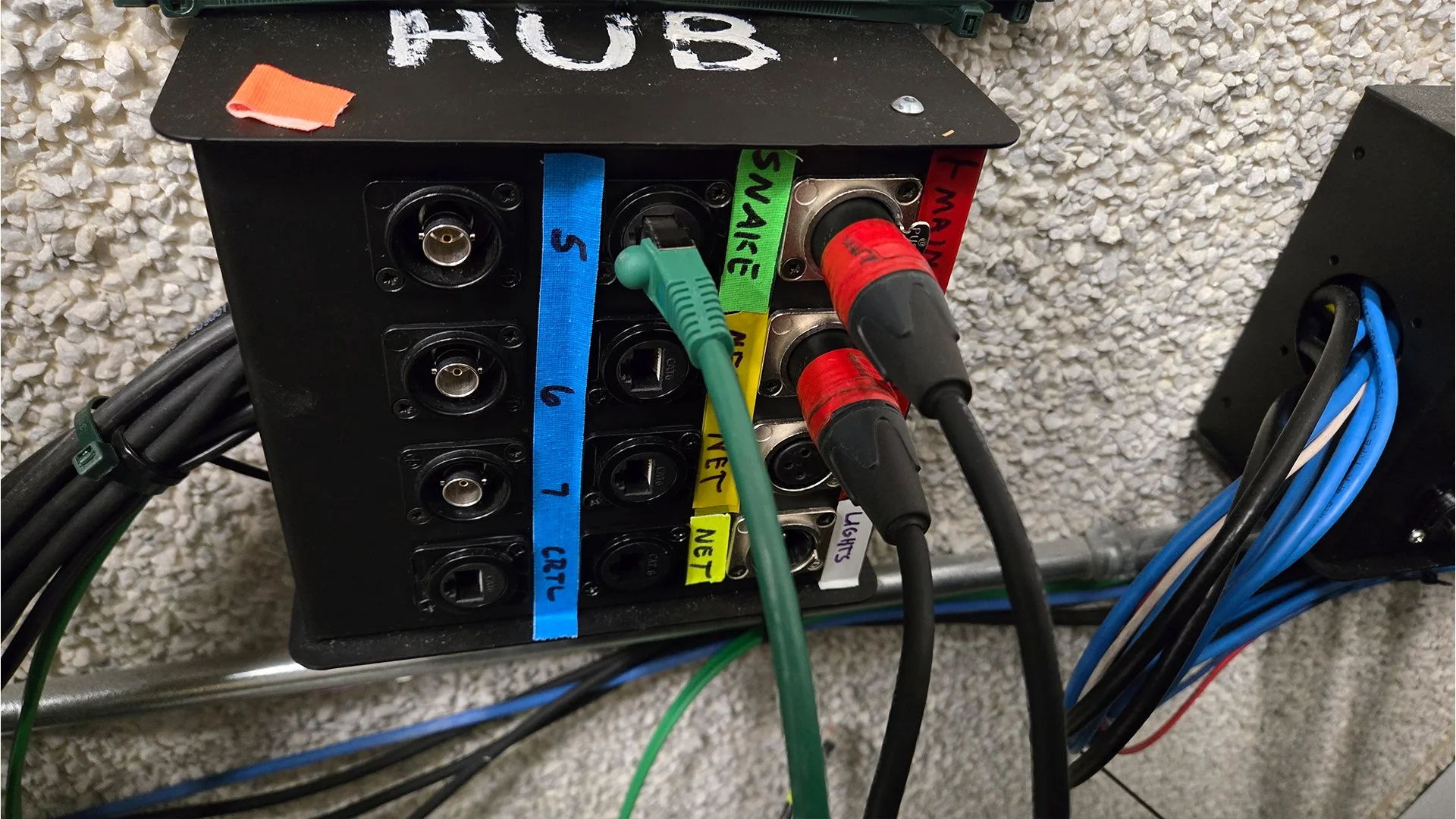

Find the cable bundle with XLR cables and green network cable.  Plug into HUB box:

a.       Green network cable (green to green)  This is the “snake” which connects the stage inputs to the soundboard, and the soundboard to your ear monitors

b.       Optional - 2 XLR cables (red cables into top two red sockets)  do this if you want the big speakers on - these are audio cables connecting soundboard to house amps

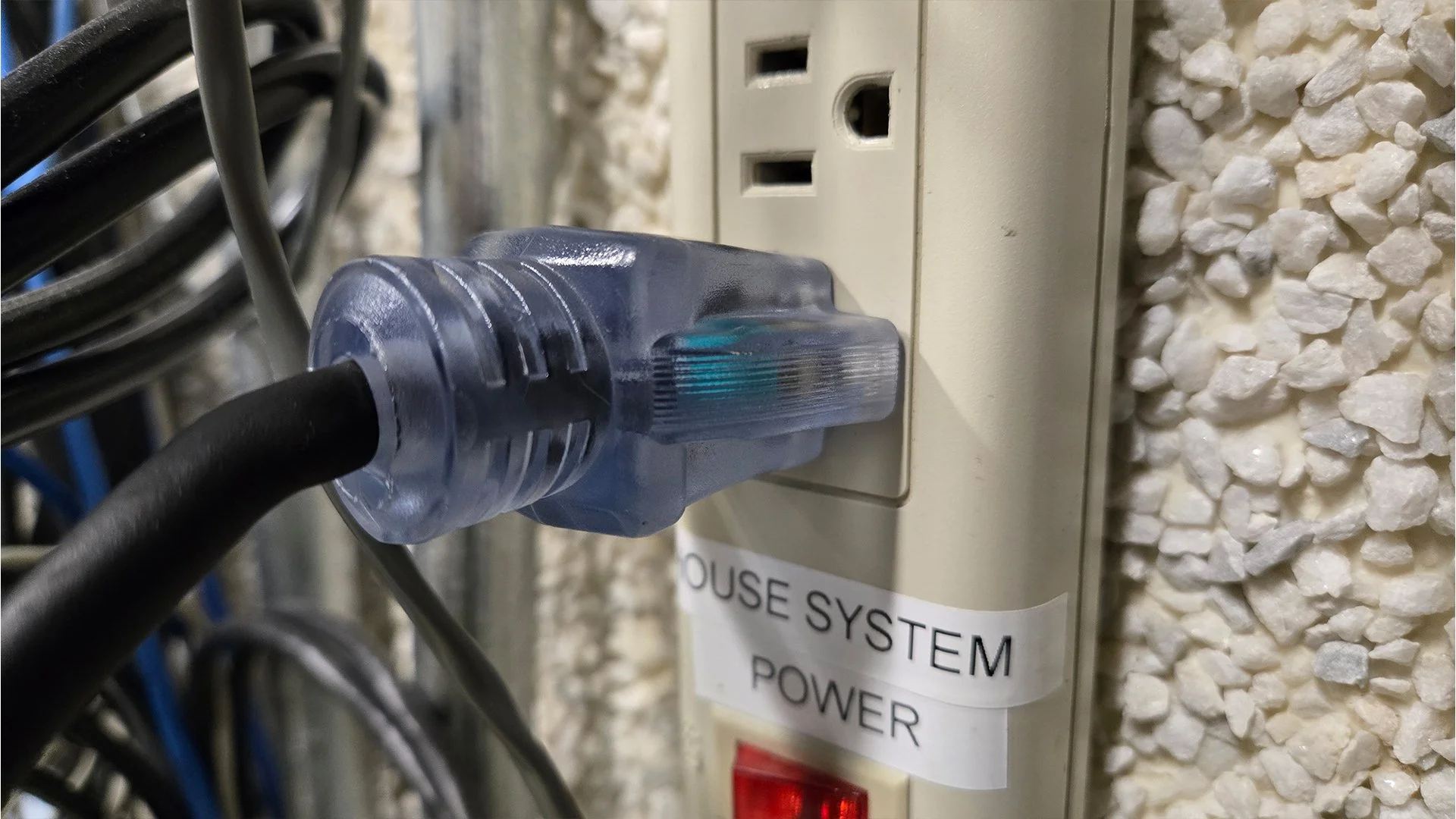

Plug power cable into any wall outlet.

Plug other ends of that same cable bundle into the sockets on the right hand end of the sound cart.

a.       Green network cable (green cable into green port labeled “snake”)

b.       2 XLR cables (red cables into two red ports)

Give the sound cart some power

1         When X32 soundboard powers-up, load the “contemporary worship” scene

a.       On right side of board, find area for “scenes”.  Push “view”

b.       On main display, use left/right arrows to navigate to “scenes” tab

c.       Use far left knob (twist and then push) to select “contemporary worship)

d.       Use far right knob to (push) to confirm, and scene will load

video of necessary instructions

video of optional instructions
